AISI/SUS304,304L,310,316,316L,321,430 Wire Cloth With 35Holes/Inch

Name: AISISUS304304L310316316L321430 Wire Cloth With 35HolesInch
Brand: Tenglu
Price: 1 USD

China AISI/SUS304,304L,310,316,316L,321,430 Wire Cloth With 35Holes/Inch wholesale

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 10rolls

Price : usd

Payment Terms : T/T, L/C at sight

Delivery Time : In 20days

Packaging Details : Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof

Material : AISI/SUS304, 310, 316, 430

Mesh Count : 35mesh/Inch

Wire Dia. : 0.15mm-0.30mm

Weave Type : Plain Weave

Width : 1.0m, 1.2m, 1.3m, 1.5m, 2.0m; 36", 48"

Length : 30m; 100ft

Certification : ISO9001:2015

Contact Now

AISI/SUS304,304L,310,316,316L,321,430 Wire Cloth With 35Holes/Inch

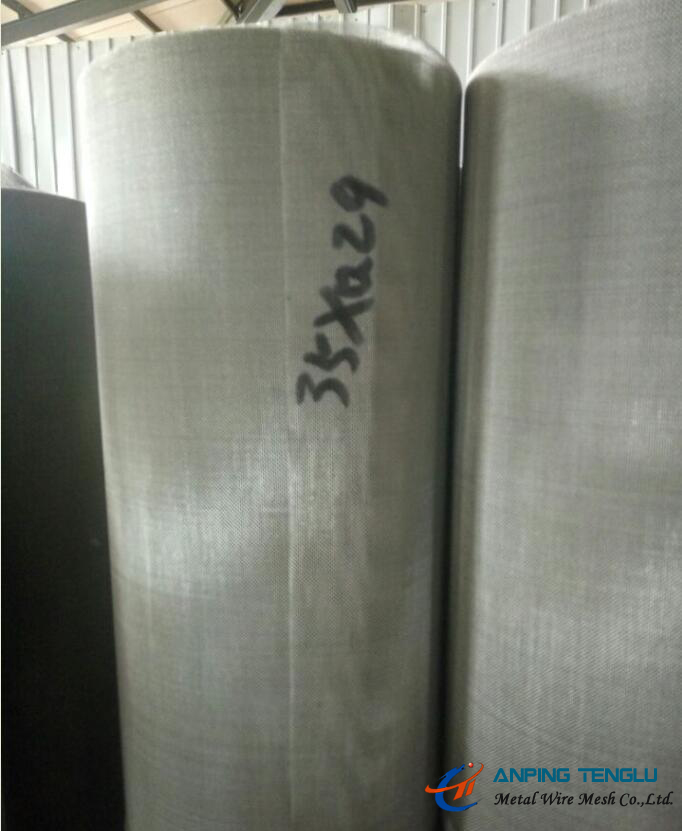

Stainless Steel Woven Wire Mesh

35 mesh plain weave stainless steel wire mesh including 35 wires and openings of 1 inch. Using 0.15-0.30mm diameter wire, by plain weaving, woven 35 mesh opening for 0.4-0.5mm solid particles , it can also be used as a liquid or gas fine filter material.. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Materials: SS201, SS202; SS301, SS302, SS304, SS304L, SS309, SS309S, SS310, SS310S, SS316, SS316L, SS321; SS410, SS420, SS430.

Weaving Type: Plain weave.
AISI/SUS304,304L,310,316,316L,321,430 Wire Cloth With 35Holes/Inch

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.
Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.
Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:
This kind of stainless steel wire mesh are widely used in acid, alkali screening and filtration under environmental conditions, the oil industry for the mud net, chemical fiber chemical industry for sieving, environmental protection, minerals, aviation, paper industry, electronics, metallurgy , electroplating industry for pickling and so on.

Specifications:

Mesh	Wire Diameter		Aperture		Open Area Rate	Weight/㎡
Mesh	mm	Inch	mm	Inch	%	Kgs	Lbs
35	0.30	0.0118	0.425	0.0167	34.41	1.57	3.46
	0.28	0.0110	0.445	0.0175	37.90	1.37	3.01
	0.25	0.0098	0.475	0.0187	42.96	1.09	2.40
	0.23	0.0090	0.496	0.0195	46.66	0.93	2.04
	0.21	0.0082	0.515	0.0203	50.49	0.77	1.69
	0.19	0.0074	0.535	0.0210	54.49	0.63	1.38
	0.17	0.0066	0.555	0.0218	58.63	0.50	1.11
	0.15	0.0059	0.575	0.0226	62.93	0.39	0.86
Roll Width: Max 8.0m

Standard Specifications:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8

Other specifications according to your requirements.
