T310 T310s Stainless Steel Wire Mesh With Magnetic/Non-magnetic

Name: T310 T310s Stainless Steel Wire Mesh With MagneticNonmagnetic
Brand: Tenglu
Price: 1 USD

China T310 T310s Stainless Steel Wire Mesh With Magnetic/Non-magnetic wholesale

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 5Rolls

Payment Terms : T/T, Western Union, L/C at sight

Delivery Time : in 25days

Packaging Details : Ship polyester mesh with bublle film inside,plywood case outside. Or at your requests.

Material : T310, T310S

Mesh Counrs : 2 to 500

Wire Diameter : 0.02-2.0mm

Common Width : 48", 36", 1.0m, 1.2m, 1.5m, 2.0m

Common Length : 100ft, 30m, 50m

Certification : ISO9001:2015

Contact Now

Stainless Steel 310 Wire Mesh is suited for applications requiring high strength and excellent oxidation resistance. The maximum safe temperature is about 2000°F, but is successfully used up to 2100°F under certain conditions. Preforms well under intermittent heating and cooling. Type 310 also refered to as T-310 or T310, is non-magnetic when annealed or cold worked. Well suited where a combination of strength, toughness, corrosion and oxidation-resistance is essential.

T310 T310s Stainless Steel Wire Mesh With Magnetic/Non-magnetic

Composition:

Chemical Composition(%)
Grade	Ni	Cr	Si	Mn	C	S	P
310	19.00-22.0	24.00-26.0	≤1.50	≤2.00	0.25	≤0.030	≤0.045
310S	19.00-22.0	24.00-26.0	≤1.50	≤2.00	≤0.08	≤0.030	≤0.035

Features:

A high temperature nickel alloy that has excellent corrosion properties. Can withstand high operating temperatures up to 1800 degrees F for extended time periods.

310S stainless steel(2520),due to high content of Ni and Cr, it is with good oxidation resistance, corrosion resistance, acid and alkali resistance, high temperature resistance. The maximum service temperature is 1200℃

Applications:

SS310/310S wire cloth is often used for welding rod, furnace parts, aircraft and jet engine parts, oil refinery and chemical processing equipment, heat exchangers and strainers.

Specifications:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8

Other specifications according to your request.

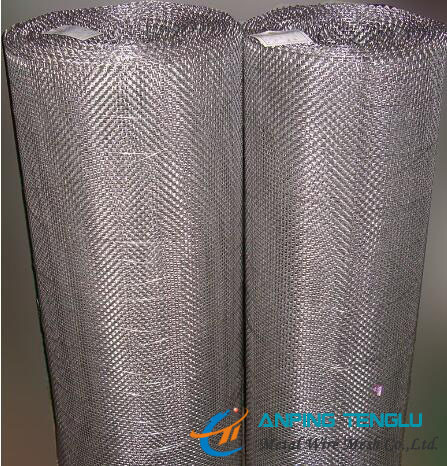

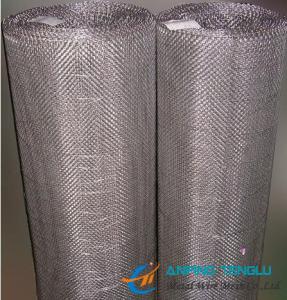

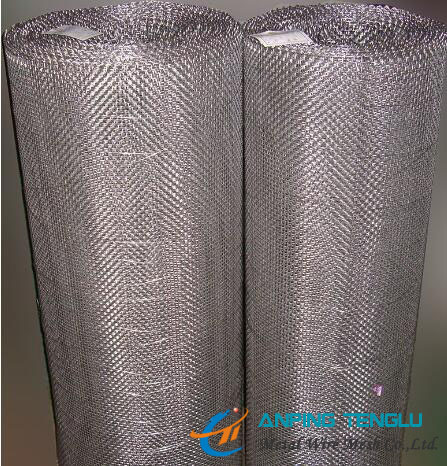

T310 T310s Stainless Steel Wire Mesh With Magnetic/Non-magnetic Images
