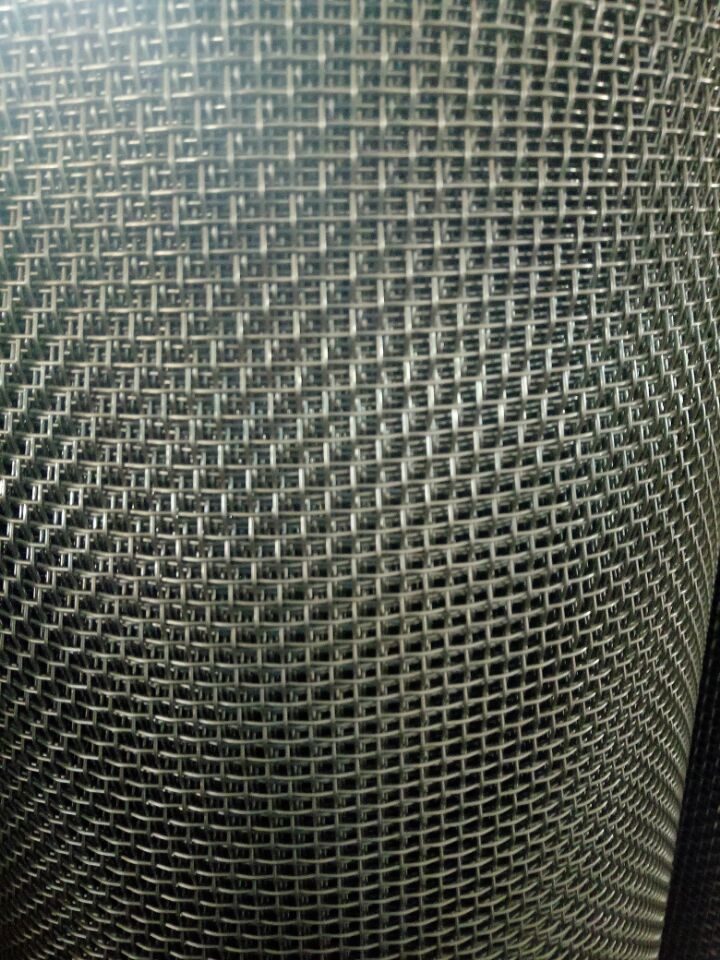

12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters

Name: 12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
Brand: Tenglu
Price: 1 USD

China 12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters wholesale

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 10rolls

Price : usd

Payment Terms : T/T, L/C at sight, Western Union

Delivery Time : In 20days

Packaging Details : Inside with a paper tube(Cylindrical Cardboad paper core inside), outside with a piece of waterproof.

Material : SUS304

Mesh Count : 20/inch

Wire Dia. : 0.45mm

Width : 1.22m/48"

Length : 30.5m/100ft

Certification : ISO9001:2015

Contact Now

Stainless Steel Woven Wire Mesh

Stainless steel wire mesh can be supplied in Square Mesh Wire Cloth and Space Cloth as a result of different weaving patterns or to meet the demand of specific application devices. This kind of wove Mesh is formed by interlocking wire to produce a given aperture.

We produces Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

12mesh SS304 Stainless Steel Woven Wire Mesh For Industry Filters
Materials: SUS201, SUS302, SUS304, 304L, SUS316, SUS316L, 310,310S, etc.

Weaving Type:
Plain weave.
The weaving is determined according to our customers specific requirements, such as the material,the wire diameter,the size of the mesh,width and length.

Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion resistance and rust resistance resistance.

Square aperture, high flow through and relative high open area, as result less pressure drop during filtration.

Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.

Applications:
Air Vents;
Filters;
Test sieves;
Plastic Particles Screening;
Door and Window Protection;
Sand Sieve;
Drug Screening;
Filtration Support Material;
Machine Sieve;
Food Screening;
Shale Shaker Screen.

Specifications:

Mesh	Wire Diameter		Aperture		Open Area Rate	Weight/㎡
Mesh	mm	Inch	mm	Inch	%	Kgs	Lbs
12	0.80	0.0314	1.316	0.0518	38.69	3.84	8.44
	0.70	0.0275	1.416	0.0557	44.79	2.94	6.46
	0.60	0.0236	1.516	0.0597	51.34	2.16	4.75
	0.50	0.0196	1.616	0.0636	58.33	1.50	3.30
	0.40	0.0157	1.716	0.0675	65.77	0.96	2.11
	0.30	0.0118	1.816	0.0715	73.66	0.54	1.18
Roll Width: Max 8.0m

Standard Specifications:

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8

Other specifications according to your requirements.
