10mm Hole With 2mm Wire Diameter, 1.5mm Width, Light Weight SS304 Crimped Wire Mesh

Name: 10mm Hole With 2mm Wire Diameter 15mm Width Light Weight SS304 Crimped Wire Mesh
Brand: Tenglu
Price: 1 USD

China 10mm Hole With 2mm Wire Diameter, 1.5mm Width, Light Weight SS304 Crimped Wire Mesh wholesale

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 5 rolls

Price : Negotiable

Payment Terms : T/T, L/C at sight

Delivery Time : According to required quantity.

Packaging Details : Each roll with polyfilm with water proof paper outside/wooden pallets.

Material : Stainless Steel 304 Wire

Type : Light Weight Crimped Mesh

Application : Screen

Weave Style : Plain Weave

Technique : Woven

Certification : ISO9001:2015

Contact Now

Stainless Steel Crimped Wire Mesh

Made of crimped metal wire in waves, with the position of the two waves opposite to each other to guarantee the uniform of the opening.

10mm Hole With 2mm Wire Diameter, 1.5mm Width, Light Weight SS304 Crimped Wire Mesh

Material	SS304
Hole Size	10mm
Wire Dia.	2mm
Width	1.5m
Length	30m

1.Material:

stainless steel wire(Featured Material), copper wire, Iron wire, black wire, galvanized, and other non-ferrous metal.

2.Openings:
square or rectangular openings

3.Weaving:
Pre-crimping before Weaving. In two-way separated wave bending, locked bending, flat-topped curved, two-way bending, one-way separated wave bending.

4.Advantage:
Structure firm and durable.

5.Usage:
As wire mesh for pig breeding, mine and stone works, glass factory, coal mine, hardware products, coal plants, construction, petrochemical industry, construction machinery, etc.

6. Specifications:
In fact, crimping wire mesh has no fixed specifications, it is according to difference usages, differenet materials, wire diameters, hole sizes.

Wire dia	Aperture	Mesh	Length	Weight	Wire dia	Aperture	Mesh	Length	Weight
(mm)	(mm)	Mesh	(M)	(Kg)	(mm)	(mm)	Mesh	(M)	(Kg)
4	40	0.58	30	142	1.2	5	4	30	88
4	30	0.75	30	182	1.2	4	4.9	30	99
4	25	0.87	30	213	1.2	3	6	30	132
3.2	25	0.87	30	141	1	6	3.6	30	55
3.2	20	1.1	30	169	1	5	4.25	30	65
2.6	20	1.12	30	116	1	4	5	30	76
2.6	18	1.23	30	127	1	3.2	6	30	92
2.6	15	1.44	30	173	1	3	6.35	30	97
2	15	1.49	30	92	1	2.18	8	30	122
2	12	1.8	30	110	0.8	2.83	7	30	68
2	10	2.12	30	127	0.8	2.38	8	30	78
2	8	2.54	30	155	0.8	2.2	8.5	30	83
1.8	7	3	30	149	0.8	2	9	30	88
1.8	6	3.25	30	161	0.8	1.75	10	30	98
1.6	7	3	30	117	0.8	1.5	11	30	108
1.6	6	3.35	30	131	0.8	1.3	12	30	118
1.6	5	3.85	30	150	0.7	1.4	12	30	90
1.6	4	4.5	30	176	0.7	1.84	10	30	75
1.6	3	5.5	30	215	0.6	1.21	14	30	77
1.4	6	3.5	30	105	0.6	1.52	12	30	66
1.4	5	4	30	120	0.6	1.94	10	30	55
1.4	4	4.7	30	140	0.5	1.3	14	30	54
1.2	8	2.7	30	59	0.5	1.09	16	30	61
1.2	7	3.1	30	68	0.5	0.9	18	30	69

Other Specifications according to your requirements.

Packing

10mm Hole With 2mm Wire Diameter, 1.5mm Width, Light Weight SS304 Crimped Wire Mesh

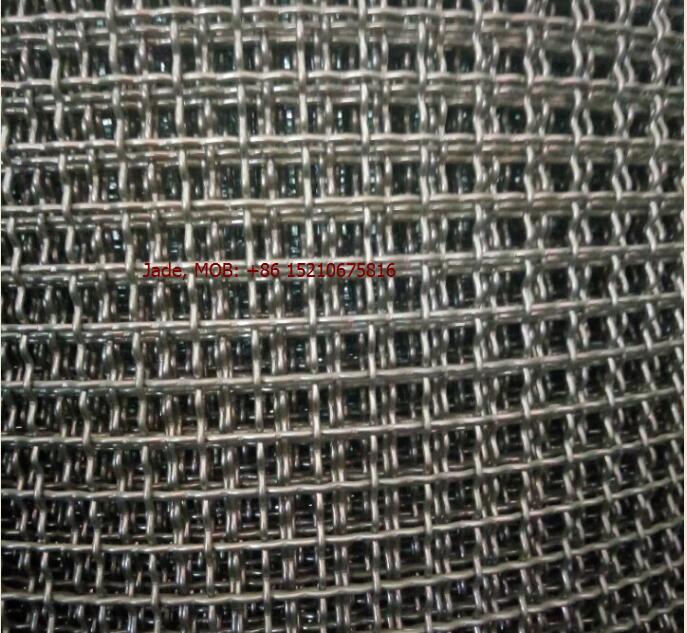

10mm Hole With 2mm Wire Diameter, 1.5mm Width, Light Weight SS304 Crimped Wire Mesh Images
