Food Grade Stainless Steel 304, 316 Compound Balanced Weave Belt

Name: Food Grade Stainless Steel 304 316 Compound Balanced Weave Belt
Brand: Tenglu
Price: 1 USD

China Food Grade Stainless Steel 304, 316 Compound Balanced Weave Belt wholesale

Brand Name : Tenglu

Place of Origin : Hengshui

MOQ : 5Rolls

Price : usd

Delivery Time : Generally 20days(According to your quantity need)

Packaging Details : Waterproof Pater, Wooden Case

Material : SS304, 316, etc

Standard : Food Grade

Wire Diameter : 0.1-6mm

Certification : ISO9001:2015

Contact Now

Compound Balanced Weave Belt consists of a series of alternating left-hand and right-hand spirals fastened by a straight cross-rod connector. The close nesting of the spirals makes this belt ideal for carrying very small parts, such as nuts, bolts, screws, nails, etc. The compound balanced metal (mesh) belts offer the tightest design of any woven wire belt. It is mostly used in Biscuits industries, Barkery and Baking etc.

Advantages:

1. Since the surface is flat and smooth,the belts can carry small items and unstable products.

2. The allowable tension is high,so that heavy load can be transported.

3. The belt strenght against pressure is high,so that the belts can be used for processing under pressure.

4. The belts can be used at high temperature.

5. The belts can be used for textile products refining and cleaning process.

Compound Balanced Belt is used in following areas:

BAKING
BAKERY
BISCUITS
TORTILLA
HEAT TREATING
SMALL PART APPLICATIONS

Sr No.	No. Of Spirals per feet		No. Of Cross-rods per feet	Spiral wire dia	Cross wire dia
1	CB-3-24-55-12-10	24	55	12 swg	10 swg
2	CB-3-24-65-14-12	24	65	14 swg	12 swg
3	CB-3-30-72-14-12	30	72	14 swg	12 swg
4	CB-3-36-76-16-14	36	76	16 swg	14 swg
5	CB-3-36-80-18-16	36	80	18 swg	16 swg
6	CB-3-60-80-18-16	60	80	18 swg	16 swg
7	CB-3-60-100-16-18	60	100	16 swg	18 swg

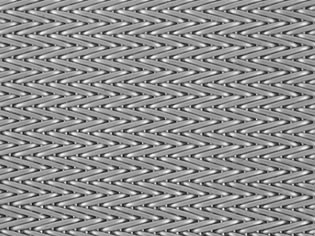

Food Grade Stainless Steel 304, 316 Compound Balanced Weave Belt Images
