Five Heddle Woven Stainless Steel Wire Cloth 108×59, 110×60, 38×38mesh/inch

Name: Five Heddle Woven Stainless Steel Wire Cloth 10859 11060 3838meshinch
Brand: Tenglu
Price: 1 USD

China Five Heddle Woven Stainless Steel Wire Cloth 108×59, 110×60, 38×38mesh/inch wholesale

Place of Origin : Hengshui

Brand Name : Tenglu

Certification : ISO9001:2015

MOQ : 5 rolls

Price : Negotiable

Packaging Details : wrapped with moister-proof paper, then in wooden cases.

Delivery Time : According to required quantity(Generally less than 30 days)

Payment Terms : T/T, L/C at sight

Material : Stainless Steel Wire

Type : Wire Cloth

Application : Filters

Technique : Woven

Weave Style : five-heddle dutch

Contact Now

Five Heddle Woven Stainless Steel Wire Cloth has a smooth top surface and an open lower surface. It is ideal to withstand high mechanical strain and excellent filter performance.

Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L.

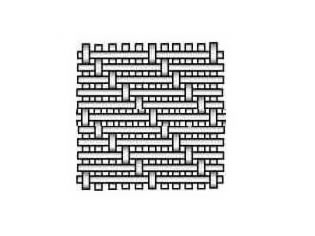

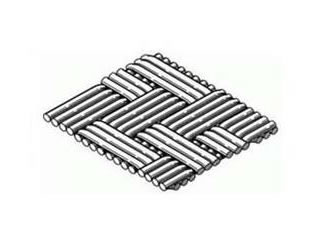

Weave Type:

Five Heddle Woven Stainless Steel Wire Cloth 108×59, 110×60, 38×38mesh/inch

Specifications

Meshes per inch(25.4mm)	Wire Diameter(mm)	Aperture(mm)	Open Area%	Weight(kg/m2)
Warp × Weft	Wire Diameter(mm)	Warp × Weft	Open Area%	Weight(kg/m2)
108 × 59	0.16	0.075 × 0.271	20	1.07
110 × 60	0.16	0.071 × 0.263	19	1.09
38 × 38	0.15	0.518 × 0.518	60	0.43

Other size according to your requirements.

Packing: wrapped with moister-proof paper, then in wooden cases.

Five Heddle Woven Stainless Steel Wire Cloth 108×59, 110×60, 38×38mesh/inch
